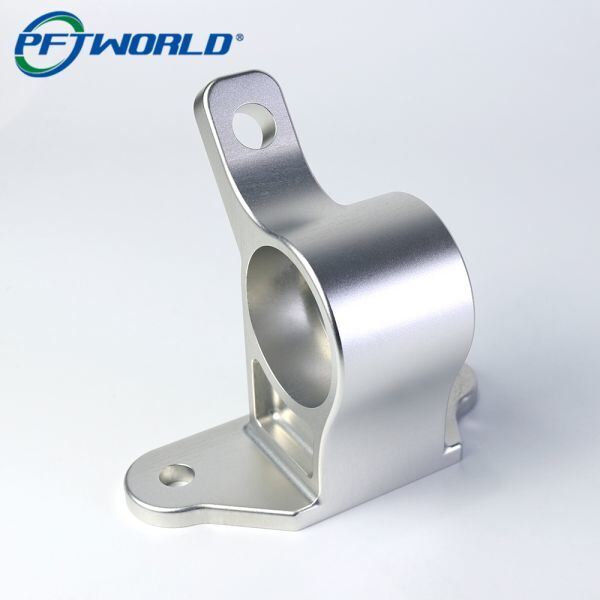

CNC Machining Industrial-grade Metal Tube Mounting Bracket

Metal tube mounting brackets are key components in industrial automation, machinery frames, piping systems, and structural assemblies. They provide secure support, precise alignment, and vibration resistance for metal tubes and piping networks. CNC machining ensures industrial-grade strength, exact tolerances, and customizable geometries for specialized applications.

This article explains how CNC machining produces durable tube mounting brackets, material selection, precision features, and factory best practices for high-performance industrial applications.

The choice of material directly affects strength, corrosion resistance, and machinability.

Factory tip: Stainless steel is preferred for corrosion-prone or high-temperature environments, while aluminum is used where weight reduction is critical.

CNC machining allows production of complex geometries to meet custom mounting requirements:

• Multiple mounting holes: For secure attachment to frames or machinery

• Tube clamp grooves: Ensures exact tube alignment

• Reinforced ribs: Increase load-bearing capacity

• Chamfered edges and rounded corners: Reduce stress concentration

Precision machining ensures ±0.01–0.02 mm tolerances, critical for alignment and vibration-free installation.

The production of high-quality tube mounting brackets involves several steps:

1. CAD Design

   • Define bracket geometry, hole patterns, tube diameter fit, and tolerances.

2. CAM Programming

   • Optimize toolpaths for milling, drilling, and contouring.

3. Material Preparation

   • Cut raw metal stock to approximate size.

4. Rough Machining

   • Remove bulk material while leaving allowance for finishing.

5. Precision Machining

   • Final milling of holes, grooves, and mounting surfaces to exact tolerances.

6. Surface Finishing

   • Deburring, polishing, anodizing (aluminum), or passivation (stainless steel).

7. Inspection

   • Dimensional check with CMM, visual inspection for burrs, and surface finish measurement.

High-precision brackets require proper tooling:

• End mills and slot cutters for grooves and mounting surfaces

• Drill bits with optimized point angle for clean holes

• Carbide or coated tools for wear resistance, especially on stainless steel

• Soft-jaw or custom fixtures to prevent deformation during clamping

Tip: For thin or lightweight brackets, machining in multiple setups with low clamping force prevents distortion.

Depending on material and environment, surface finishing improves:

• Wear resistance

• Corrosion protection

• Appearance

Common options:

Industrial-grade brackets require consistent performance under load. Factories perform:

• Dimensional inspection using CMM or calipers

• Hole and groove verification for correct tube fit

• Surface roughness checks (Ra 0.8–1.6 µm typical)

• Load testing (for critical applications)

Ensuring precise tolerances guarantees reliable mounting, minimal vibration, and long-term durability.

• Industrial automation frames: Conveyor lines, robotic arms

• Hydraulic and pneumatic systems: Secure piping and tubing

• Machinery and equipment: Alignment and structural support

• Energy and power systems: Mounting of cooling pipes or conduits

• Custom industrial projects requiring precision alignment and high load capacity

CNC machining enables the production of custom, high-strength metal tube mounting brackets with:

• Precise hole and groove alignment for exact tube placement

• High load-bearing capacity with reinforced design

• Tight tolerances (±0.01–0.02 mm) for vibration-free performance

• Surface finishing and corrosion resistance suitable for industrial environments

• Material versatility: Aluminum, stainless steel, mild steel, and tool steel

Properly machined brackets ensure durable, reliable, and high-performance assembly in industrial machinery and structural systems.
